Hardware Aerial Network Universal Pole Bracket ADSS FTTH

Geto telecommunication equipment limited company
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

Hardware Aerial Network Universal Pole Bracket ADSS FTTH

  • 1
  • 2

Brand Name : Geto Telecom

Model Number : UPB

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 100

Price : 1.3

Payment Terms : L/C, T/T

Supply Ability : 5000PCS/Day

Delivery Time : 10 days

Packaging Details : Carton + Woven Bag + Pallet

Name : Universal Pole Bracket

Breaking Force : 13Kn

Material : Aluminum

Application : fitting for pole

Weight : 0.2 KGS

Standard or Nonstandard : Standard

Customade : Available

Status : New

Contact Now

Hardware Aerial Network Universal bracket ADSS FTTH
installation guidance:

With pole band: the UPB universal bracket fixes on all type of poles, drilled or undrilled, by using two pole bands of 20mm width SB204or SB207 and two buckles B20 or two clevis fasteners A20. On average, two meters of pole band are recquired per bracket. The choice of the pole band's thickness depends on the required resistance and on the loads to which the bracket is submitted.
With bolt: if the pole head is drilled (wooden, sometimes concrete) the universal pole bracket UPB can also be mounted with a cross-through bolt Ø 14 or 16mm. The bolts's length is then proportional to the pole head's diameter + 42mm (the bracket's thickness).
Hardware Aerial Network Universal Pole Bracket ADSS FTTH

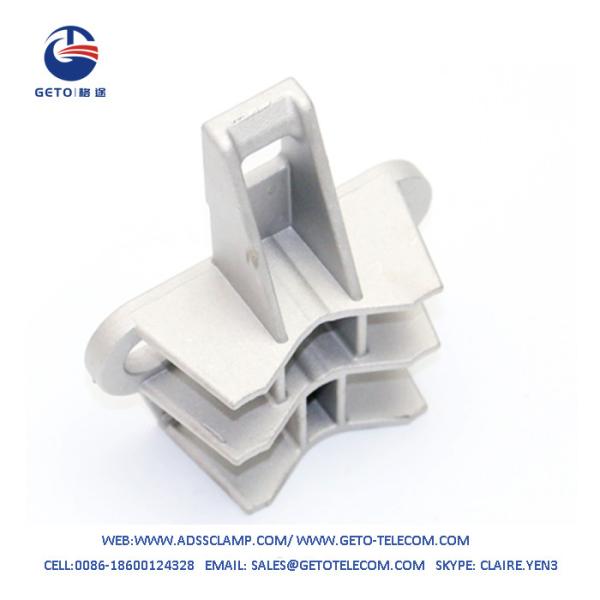

The UPB universal bracket is a pole hardware made of aluminum alloy offering high mechanical properties. Its unique design has been engineered so to offer an universal pole hardware solution able to adapt to all cable installation configurations on wooden, concrete or metal poles:
Cable unroll on pulley
Stay wire
Cross-arm mounting
Drop connection
Dead-ending
Junction points
Angled passageways
Derivation points
Hardware Aerial Network Universal Pole Bracket ADSS FTTH
Our service

1, Product consulting service
2, Cost-saving advice

3, Fast response speed to needs
4, Professional and complete reference documents
5, Safe and cheap transportation solutions
6, 7*24 Hours After Sales Service
